Λεπτομέρειες:
Πληρωμής & Αποστολής Όροι:
|
Υλικό: | Φύλλα από ανοξείδωτο χάλυβα, χάλυβας HDP | Επιφανειακή επεξεργασία: | Ζεστό βουτηγμένο, γαλβανισμένο, ανοξείδωτο |
---|---|---|---|
Χρησιμοποιώντας τη ζωή: | Περίπου 10 έτη | Εφαρμογή: | Γεωργία σιδηρόδρομοι ταχύδρομοι αγροτική φυλακή κλπ |
Τύπος ξυραφιών: | Ενιαίο ξυράφι | Δείγμα: | δωρεάν |
Τύπος: | BTO-22, BTO-16, BTO-18, CBT-65, CBT-30 | Πακέτο: | Ξύλινη παλέτα, χαρτί με νερό |
Επισημαίνω: | stainless steel razor barbed wire,cross type security razor wire,BTO-22 razor wire fence |
Stainless Steel Cross Type Security Barbed BTO-22 Razor Wire Protection Fence
Razor wire (also named barbed tape or Blade Wire, Barbed Wire) is used to protect boundaries or perimeters by preventing or dissuading passage by humans.
Razor wire's points are made very sharp and meant for ripping clothes and flesh as it follows the curves in the body when a person tries to cross over them.
Razor wire acts both as a physical and psychological deterrent.
Razor wire/barbed tape is prohibited in some countries due to its potentially dangerous nature.
Types of Razor Wire:
Razor Wire Fence
Concertina Razor Coils
Razor Wire Flat Wrap Coils
Welded Razor Wire
Razor Ribbon
Razor Wire Mobile Security Barrier
Galvanized Razor Wire
Straight Line Razor Wire Fence
Stainless Steel Razor Wire
Razor Wire Concertina
Double Concertina Razor Wire
Specification:
Reference Number |
Thickness (mm) |
Wire Dia (mm) |
Bard Length (mm) |
Bard Width (mm) |
Bard Distance (mm) |
BTO-10 | 0.5±0.05 | 2.5±0.05 | 10±1 | 13± | 16±1 |
BTO-12 | 0.5±0.05 | 2.5±0.05 | 12±1 | 15±1 | 26±1 |
BTO-16 | 0.5±0.05 | 2.5-2.8 | 16±1 | 19±1 | 30±1 |
BTO-18 | 0.5±0.05 | 2.5±0.05 | 18±1 | 15±1 | 33±1 |
BTO-22 | 0.5±0.05 | 2.5±0.05 | 22±1 | 15±1 | 34±1 |
BTO-28 | 0.5±0.05 | 2.5±0.05 | 28±1 | 15±1 | 53+1 |
BTO-30 | 0.5±0.05 | 2.5±0.05 | 30±1 | 21±1 | 54±1 |
CBT-60 | 0.5±0.05 | 2.5±0.05 | 60±1 | 32±1 | 100±1 |
CBT-65 | 0.5±0.05 | 2.5±0.05 | 65±1 | 21±1 | 100±2 |
Razor Barbed Wire Coil and Unit Loops
Outside Diameter | No.of Loops | Standard Length Per Coil | Type | Notes |
450mm | 33 | 8M | CBT-65 | Single coil |
500mm | 41 | 10M | CBT-65 | Single coil |
700mm | 41 | 10M | CBT-65 | Single coil |
960mm | 53 | 13M | CBT-65 | Single coil |
500mm | 102 | 16M | BTO-10.15.22 | Cross type |
600mm | 86 | 14M | BTO-10.15.22 | Cross type |
700mm | 72 | 12M | BTO-10.15.22 | Cross type |
800mm | 64 | 10M | BTO-10.15.22 | Cross type |
960mm | 52 | 9M | BTO-10.15.22 | Cross type |
Details of Razor Wire:

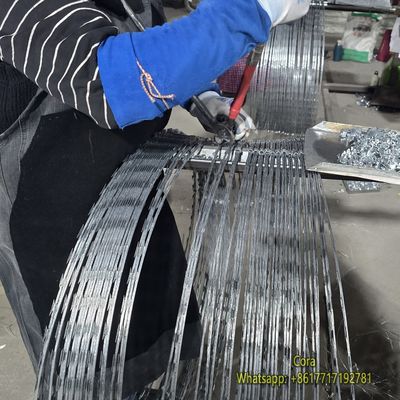

Workshop:
Above is our No.3 workshop, producing BTO-16, Packed with wooden box. daily output is 1/40HQ.
Packing & Delivery:
1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.
Razor Wire and Perimeter Security:
Detection at the perimeter enables security personnel to quickly assess and respond to security events while intruders remain delayed or caught up in the razor wire. Any attempt to cut, bypass or disturb the razor wire is immediately detected.
