Supplier Of Long Life UV Resistant Geotextile Material Earth Filled Defensive Barriers For Army Defensive Barrier Wall
Introduction of Defensive Barrier :
Explosion proof cage, also known as explosion-proof wall, lock buckle sandbag, flood prevention wall, is a new product that is assembled from welded gabion mesh and geotextile. It can hold fine sand, soil, and stones instead of traditional military bunker sandbags, and can be recycled.Features of explosion-proof cage and explosion-proof wall products: The explosion-proof cage system is designed with foldable packaging that is easy to transport, has strong mobility, is easy to install, has outstanding effects, and is conducive to recycling
HESCO barriers are folded into flat panels for storage and transportation, significantly saving space.
Additionally, the weight of a single HESCO barrier castle unit is very light and can be manually transported.
By unfolding and standing the folded HESCO barrier castle units and securing adjacent units with wire, a whole wall of interconnected HESCO barrier castle units can be constructed.

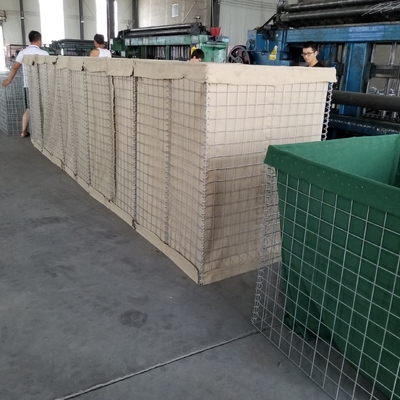

Defensive barrier wall is a prefabricated,multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,like a defence wall or bunker,it is widely used for fortification and flood control.
Defensive Barrier Features :
1. A pre-fabricated gabion of galvanized welded mesh steel fitted with a UV-protecting.
2. Polypropylene geo-textile liner.
3. Filling material is an easy- obtained mix of sand and small stones.
4. It can be used together to any length, and can be stacked for additional height.
Specification of Defensive barrier :
1) wire diameter: 4mm-5mm
2) hole: 2''x2'',3''x3'',4''x4''

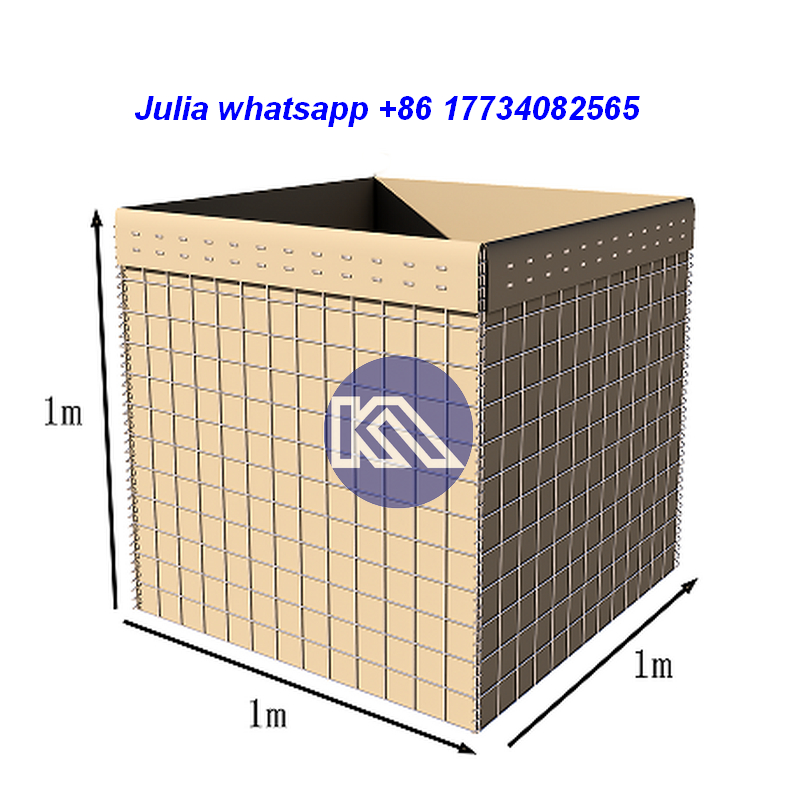

3) hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be green,beige-sand color.
HESCO BARRIERS Specification
| Model |
Height |
Width |
Length |
Internal Cells |
| KN-1(Mil 1) |
54”(1.37m) |
42”(1.06m) |
32’9”(10m) |
5+4=9 cells |
| KN-2(Mil 2) |
24”(0.61m) |
24”(0.61m) |
4’(1.22m) |
2 cells |
| KN-3(Mil 3) |
39”(1.0m) |
39”(1.0m) |
32’9”(10m) |
5+5=10 cells |
| KN-4(Mil 4) |
39”(1.0m) |
60”(1.52m) |
32’9”(10m) |
5+5=10 cells |
| KN-5(Mil 5) |
24”(0.61m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| KN-6(Mil 6) |
66”(1.68m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| KN-7(Mil 7) |
87”(2.21m) |
84”(2.13m) |
91’(27.74m) |
5+4+4=13 cells |
| KN-8(Mil 8) |
54”(1.37m) |
48”(1.22m) |
32’9”(10m) |
5+4=9 cells |
| KN-9(Mil 9) |
39”(1.0m) |
30”(0.76m) |
30’(9.14m) |
6+6=12 cells |
| KN-10(Mil 10) |
87”(2.21m) |
60”(1.52m) |
100’(30.5m) |
5+5+5+5=20 cells |
| KN-11(Mil 11) |
48”(1.22m) |
12”(0.30m) |
4’(1.22m) |
2 cells |
| KN-12(Mil 12) |
84”(2.13m) |
42”(1.06m) |
108’(33m) |
5+5+5+5+5+5=30 cells |
| KN-19(Mil 19) |
108”(2.74m) |
42”(1.06m) |
10’5”(3.18m) |
6 cells |
Defensive Barrier Application :
1. landscaping, as retaining walls, landscape urban landscape and parks.
2. or high salt pollution in the environment, Gore can be used where welded wire mesh technology.
3. within the welded wire mesh filled with stone or natural cobblestone highway together protection, slope, roadway, bridge and so on.
4. welded wire mesh is widely used in earth or soil reinforcement such as desertification, slope protection, river, coastal protection, reservoirs, canals and pipelines renovation, Rock failure protection, bridge protection, protective net.
How to install?
it is easy to install
1. Unpack the collapsible wire mesh container from package.
2. Unfold the barrier and connect barriers to reach the designed length
3. Fill soil, sand or gravel into the container. The common machine is front end loader.
4. Compact the content
5. Add layers if required.
